Galvanized Steel Pipe Rack for a pharmaceutical company

Galvanized Steel Pipe Rack for a pharmaceutical company

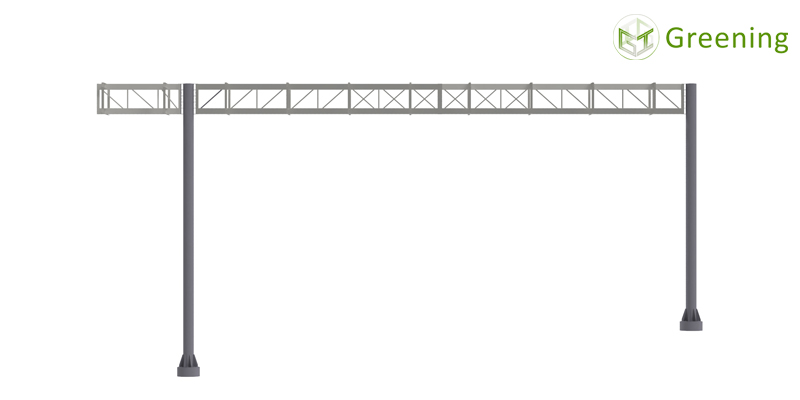

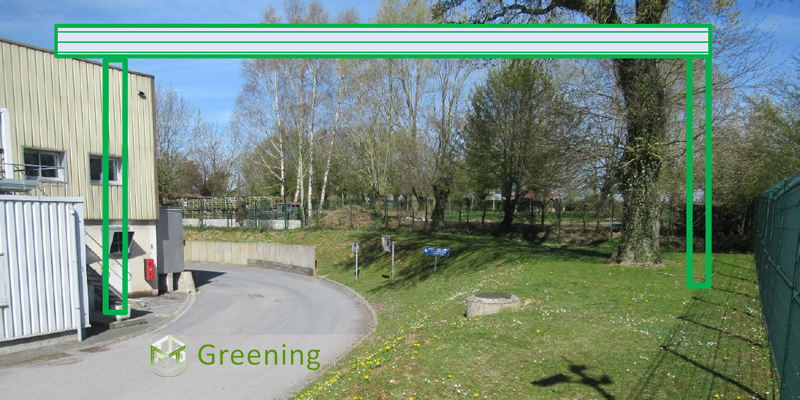

A pharmaceutical company in France installed a new chilled water system at one of its plants.  As part of the installation, a pipe rack was required to arrange the utility pipelines and cables between the equipment and a building. The hot-tip galvanized steel rack was subcontracted to our group and was about 20m long, 8.5m high and was fixed to the ground at two points.

Software Used:

  • Structural analysis and design – STAAD.Pro

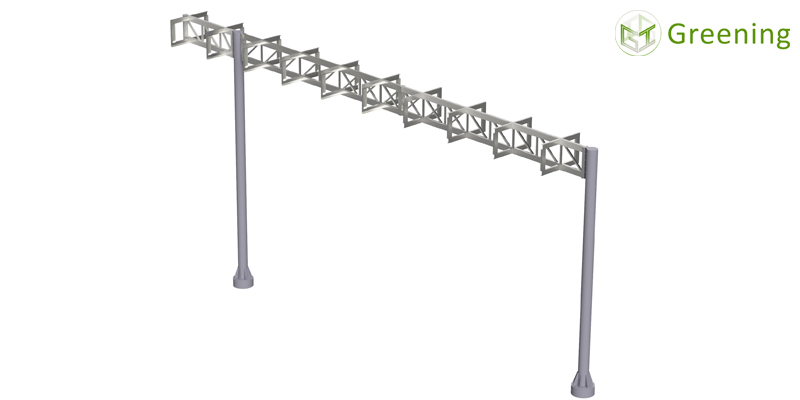

  • 3D modeling – Autodesk Inventor
  • 2D drafting - AutoCAD.


Scope of project:

  • Design and Engineering
  • Fabrication

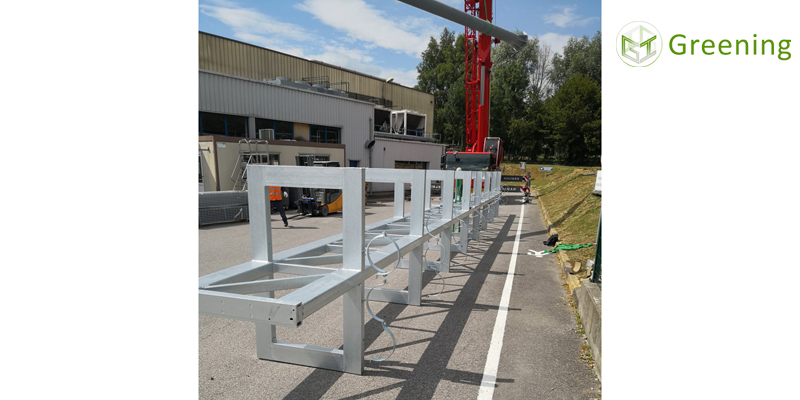

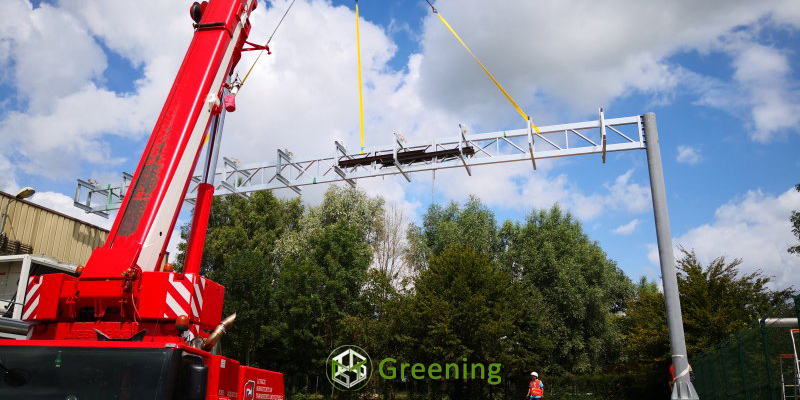

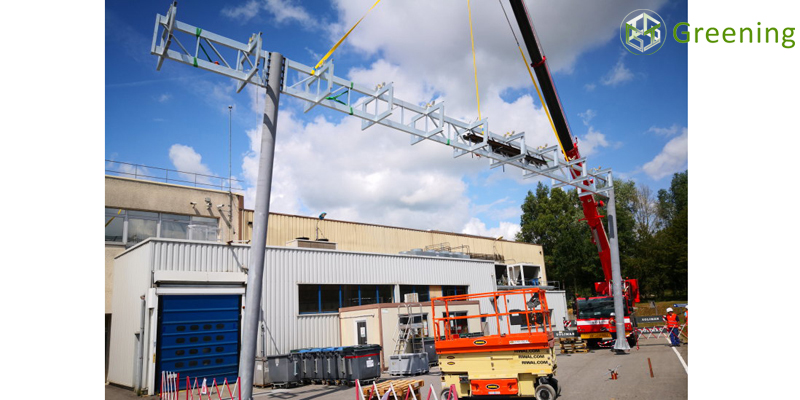

  • Erection

The design and engineering analysis was carried out by EFM Design Services while the structure was fabricated and erected by our European partner, Greening Services.

Deliverables by EFM:

  • Structural stress analysis report
  • Foundation load data and design
  • 3D model
  • General Arrangement drawing
  • Fabrication drawings
  • Bill of materials
  • Structural stress analysis report
